M16 x 60mm Loose Bolt Shield Anchor

M16 x 60mm Loose Bolt Shield Anchor

M16 x 60mm Loose Bolt Shield Anchor

  • Stock: In Stock
  • SKU: (HX)(598068|1)

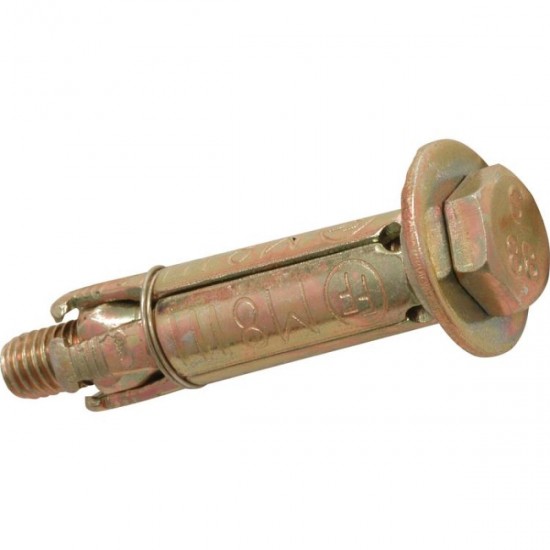

M16 x 60mm Loose Bolt Shield Anchor

Loose bolt shield anchors are traditional expansion anchors with 4 pieces segmented body and captive expansion for all variants. The thread size marked on the body.

Have a look at the table below for more detailed information regarding the bolts:

Size Shield Length Anchor Hole Size Thread Diameter Fastens Up To Bolt Length Min Hole Depth M6 x 10 12 45 6 10 55 50 M6 x 25 12 45 6 25 70 50 M6 x 40 12 45 6 40 85 50 M8 x 10 14 50 8 10 65 55 M8 x 25 14 50 8 25 80 55 M8 x 40 14 50 8 40 95 55 M10 x 10 16 60 10 10 75 65 M10 x 25 16 60 10 25 90 65 M10 x 50 16 60 10 50 115 65 M10 x 75 16 60 10 75 140 65 M12 x 10 20 75 12 10 90 85 M12 x 25 20 75 12 25 105 85 M12 x 40 20 75 12 40 120 85 M12 x 60 20 75 12 60 140 85 M16 x 15 25 115 16 15 135 125 M16 x 30 25 115 16 30 150 125 M16 x 35 25 115 16 35 155 125 M16 x 60 25 115 16 60 180 125

Specification:

  • Pack Size: 10|25|50|100
  • Product Type: Loose Bolt
  • Length: 180mm
  • Shield Length: 115mm
  • Fixing Thickness: 60mm
  • Thread Size: M16
  • Drill Diameter: 16mm
Product Specification
Application Securing Pully to Wall
Model 598068
